Coin Operated Paid Access Tripod Turnstile with Remote Push Button and QR Reader for Public Toilet and Restroom CE

  • Coin Operated Paid Access Tripod Turnstile with Remote Push Button and QR Reader for Public Toilet and Restroom CE
  • Coin Operated Paid Access Tripod Turnstile with Remote Push Button and QR Reader for Public Toilet and Restroom CE
Tempat asal GuangDong, Tiongkok
Nama merek Goldantell
Sertifikasi CE certificate
Nomor model seri GAT-306
Kuantitas min Order 1 buah
Harga Dapat dinegosiasikan
Kemasan rincian kasus kayu tertutup
Waktu pengiriman 7 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran T/T, western Union, LC, Paypal
Menyediakan kemampuan 1.000 buah per bulan
Detail produk
Catu daya 110~240V(AC) Arah masuk atau keluar, atau dua cara
Komunikasi Komunikasi RS485 Bahan Baja Tahan Karat 304
Lebar lintasan 600mm Tegangan kerja AC110/220±10%V, 50±10%HZ
Gerakan kerja Katup solenoid DC24V Lebar lengan 510 mm
Tinggalkan pesan
Deskripsi Produk

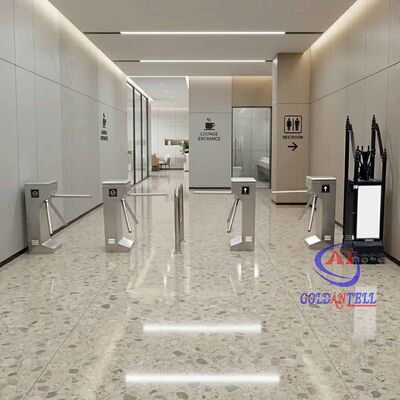

Coin Operated Paid Access Tripod Turnstile with Remote Push Button and QR Reader for Public Toilet and Restroom CE
Advanced coin-operated access control system designed for public facilities with remote push button and QR code reader capabilities.
Key Features
  • Supports global coins & tokens for entry
  • Remote push button for simplified access control
  • QR reader for secure digital scanning entry
  • Compact, space-saving design for public areas
Technical Specifications
Size 420mm (L) × 330mm (W) × 1000mm (H)
Working Voltage AC110/220±10%V, 50±10%HZ
Working Movement DC24V solenoid valve
Arm Width 510 mm
Support Force of Arm 40kg
Passage Width ≤600 mm
Opening Time 0.2 second
Pass Speed 30 persons/min
Emergency Feature Arms open automatically when power fails
Normal Running Life 3 million cycles
LED Light Direction arrow indicator
Direction Single or bi-directional (optional)
Working Environment Indoor/outdoor (with cover) -10℃~70℃
Relative Humidity ≤90% (non-condensing)
Communication Interface Standard RS485 interface, distance ≤1200m
Housing Material 304# stainless steel
Input Interface +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
Advanced Functions
  • Standard electronic interface with internet remote control capability
  • Compatible with various card readers
  • Open signal with optional memory function configuration
  • Anti-passback mechanism prevents reverse rotation
  • Hydraulic shock absorption for quiet operation
  • Multiple control modes with easy management options
  • Automatic repositioning after passage
Application Locations
  • Exhibition halls
  • Stadiums
  • Museums
  • Apartments
  • Residential areas
  • Movie theaters
  • Fitness gyms
  • Factories
  • Hospitals
Product Design
Stainless steel revolving door turnstile with three arms
Frequently Asked Questions
How about your package?
Seaworthy wooden case with foam protection.
Can your machines be used outside?
With waterproof function, suitable for outdoor use.
How about the lead time?
Regular products: 5-8 working days. Customized products: 9-13 working days.
What is your MOQ?
Any quantity is acceptable.
How about the payment method?
Standard products: 50% deposit, 50% balance before shipment.
