Space-saving Compact Wing Turnstile Cost-effective RFID Access Control Sliding Gate for Small Gym and Staff Canteen CE

  • Space-saving Compact Wing Turnstile Cost-effective RFID Access Control Sliding Gate for Small Gym and Staff Canteen CE
  • Space-saving Compact Wing Turnstile Cost-effective RFID Access Control Sliding Gate for Small Gym and Staff Canteen CE
Tempat asal GuangDong, Tiongkok
Nama merek Goldantell
Sertifikasi CE/ROHS/FCC/IS9001
Nomor model GAT-689
Kuantitas min Order 1 buah
Harga Dapat dinegosiasikan
Kemasan rincian Dikemas dalam karton terlebih dahulu, dan kemudian diperkuat dengan kotak kayu ekspor untuk kemasan
Waktu pengiriman 7 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran T/T, western Union, LC, Paypal
Menyediakan kemampuan 1.000 buah per bulan
Detail produk
Ukuran produk 1200*200*1000mm Ukuran paket 1280*370*1070mm
Aplikasi Dalam & Luar Ruangan Berat Bersih 65kg
Berat Kotor 70kg Pelabuhan komunikasi RS485, TCP/IP
Kompatibel Pembaca RFID & Pembaca Sidik Jari, akses koin, pembaca kode QR, Sistem kode batang, Kontrol Akse Bahan Baja tahan karat 304/baja tahan karat 316
Tinggalkan pesan
Deskripsi Produk
Space-saving Compact Wing Turnstile Cost-effective RFID Access Control Sliding Gate
Product Overview

Compact wing turnstile designed for space-constrained environments like small gyms and staff canteens. CE certified with cost-effective RFID access control and sliding gate functionality.

Key Features
  • Integrates with access control systems including facial recognition for staff
  • ESD equipment testing capability with three independent devices
  • Optional LCD screen for enhanced system requirements
  • Single core or dual core structure options for different installation needs
  • Higher flow rate with advanced anti-tailgate functions
  • Double protection with mechanical and infrared anti-pinch safety features
Technical Specifications
Item Details
Name Bridge type flap turnstile
Size 1200mm (L) × 200mm (W) × 1000mm (H)
Retractable arm length 260 mm
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after break down 10 seconds
Direction Single or bi-directional (optional)
Drive motor DC 24 V brush motor
Working environment Indoor/outdoor (with tent) -10℃～70℃
Communication interface Standard RS 485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA
Relative humidity ≤90% coagulation free
Housing material Domestic standard 304 # stainless steel
Working voltage AC220±10%V 50±10%HZ
Advanced Functions
  • Infrared reset function (Optional: 4 pairs or 6 pairs Infrared)
  • Infrared induction clamp function
  • Bidirectional operation (pedestrian can enter and exit from one pair of turnstiles)
  • Real-time trouble self-detect and alarm indication
  • Selectable normally open or close mode for passenger flow management
  • Humanized timeout passing reset function
  • Remote management and control via computer
  • Flashing light prompt function for easy problem identification
Product Image

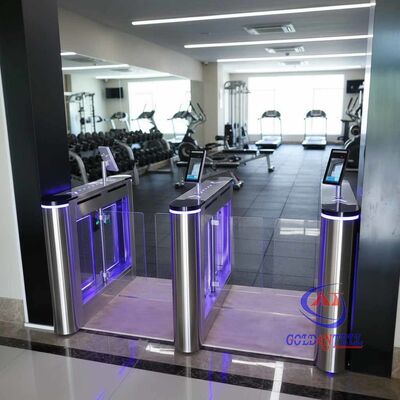

Auto Reset Turnstile Bridge Gate showing stainless steel construction and modern design
Application Areas
  • Movie theaters
  • Fitness halls
  • Country clubs
  • Fairgrounds
  • Clubs
  • Swimming Halls
  • Fitness Gyms
  • Hotels
  • Factories
  • Banks
  • Hospitals
  • Schools
Frequently Asked Questions
How about your package?
Seaworthy wooden case + Foam
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment
How about the lead time?
Regular products need 5-8 working days. Customized products need 9-13 working days
Service & Support
  • Friendly and professional customer service available within 16 hours
  • Over 10 years ODM/OEM experience with custom product design, logos, and packaging
  • Complete system software management solutions to save time and costs
  • Special repair service: No product return needed - video instruction by engineers
  • Free spare parts replacement for damaged components within 1 year warranty
Company Advantages
  • Complete security solutions provider saving time and costs
  • High quality with competitive pricing, offering OEM and ODM services
  • Professional technical support and excellent after-sales service
  • Custom design shapes and logos available
  • Fast delivery with safe shipping methods
  • One year warranty from delivery date with lifetime technical support
  • 24-hour online service with 8-hour response time for inquiries
Access Control Options
  • Fingerprint recognition systems
  • Face recognition technology
  • Card reader systems
  • QR code and barcode ticket systems
  • Special functions: counter and coin-operation capabilities
  • ESD tester system integration
