51=Four-arm 90 Degree Full Height Turnstile Heavy Duty Solenoid Locking High Security Gate for Military and Power Plant CE

  • 51=Four-arm 90 Degree Full Height Turnstile Heavy Duty Solenoid Locking High Security Gate for Military and Power Plant CE
  • 51=Four-arm 90 Degree Full Height Turnstile Heavy Duty Solenoid Locking High Security Gate for Military and Power Plant CE
Tempat asal GuangDong, Tiongkok
Nama merek Goldantell
Sertifikasi CE/ROHS/FCC/IS9001
Nomor model GAT-513
Dokumen Full Catalog Of Full Height...te.pdf
Kuantitas min Order 1 buah
Harga Dapat dinegosiasikan
Kemasan rincian Dikemas dalam karton terlebih dahulu, dan kemudian diperkuat dengan kotak kayu ekspor untuk kemasan
Waktu pengiriman 7 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran T/T, Western Union, L/C, Paypal
Menyediakan kemampuan 2.000 pcs per bulan
Detail produk
Ukuran Produk 2350L*1350W*2300JAM (MM) Bahan Baja Tahan Karat 304
Jenis Pintu Putar Tinggi Penuh Akses Ganda Berat Bersih 200kg
Berat Kotor 250kg Kompatibel Pembaca RFID & Pembaca Sidik Jari, akses koin, pembaca kode QR, Sistem kode batang, Kontrol Akse
Pelabuhan komunikasi RS485, TCP/IP Aplikasi Penjara, pabrik, pemerintah dll.
Kemasan 4 paket, 10CBM Tegangan kerja AC220 ± 10%V, 50 ± 10%Hz
Gerakan kerja Katup solenoid DC 24 V Kecepatan lulus 30 orang/menit
Menyoroti

Four-arm full height turnstile with solenoid locking

,

Heavy duty full height turnstile for military

,

High security gate turnstile CE certified
Tinggalkan pesan
Deskripsi Produk

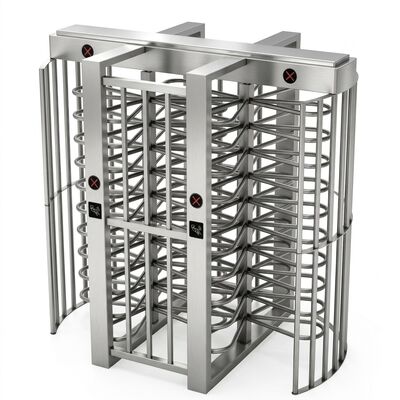

Four-Arm 90 Degree Full Height Turnstile
Heavy duty solenoid locking high security gate designed for military facilities, power plants, and other critical infrastructure. CE certified for quality assurance.
Product Overview
This full height turnstile represents advanced intelligent passageway management technology. Constructed from durable, rust-proof 304 stainless steel, it provides secure access control while maintaining comfortable passage space and preventing unauthorized entry.
Key Features
  • Precision engineering for high-security applications
  • Ideal for prisons, office buildings, government facilities, and statistical offices
  • LED indicator lights for clear operation status visibility
  • Compatible with various access control systems (RFID, fingerprint, QR code, etc.)
  • Unique two-way anti-reverse function for enhanced security
  • Programmable operating status via built-in control board
  • Automatic reset function (1-60 seconds adjustable)
  • Supports unidirectional or bidirectional access control
  • Remote management capability via computer interface
  • Customizable housing length and design options
  • Adjustable normally open/closed settings
Technical Specifications
Specification Details
Size 2350L × 1350W × 2300H (MM) or custom size
Communication Interface Standard RS 485 interface, distance ≤1200m
Working Voltage AC220±10%V, 50±10%HZ
Working Movement DC 24 V solenoid valve
Reset Time After Breakdown 10 seconds
Passage Width ≤600 mm
Time of Opening 0.2 second
Pass Speed 30 persons/min
Time to Work After Power On 3 seconds
Normal Running Life 3 million cycles
LED Light Direction arrow indicators
Working Environment Indoor/outdoor (with tent) -25℃ to 70℃
Housing Material Domestic standard 304# stainless steel
Relative Humidity ≤90% (non-condensing)
Input Interface +12V level signal or pulse width >100 ms 12V pulse, drive current >10 mA
Competitive Advantages
  • 24-month quality guarantee for peace of mind
  • OEM/ODM services available (custom designs, logos, and packaging)
  • Comprehensive pre-sale and after-sale support
  • Fast delivery times to meet project deadlines
  • Professional engineering support for integration
  • Special discounts for distributors and agents
Frequently Asked Questions
Can you do OEM service?
We offer comprehensive OEM services including custom turnstile designs (size, material, LED indicators), logo printing, and customized retail packaging. We can also create designs based on your specific requirements.
Is your turnstile compatible with different access control systems?
Yes, our intelligent turnstile works with various access controllers including RFID cards, fingerprint scanners, QR/barcode systems, and ESD test control systems. We can also provide compatible access control software or systems.
What is your warranty and after-sales service policy?
We provide a 12-month quality guarantee and have English-speaking sales and support teams available to assist with any after-sales needs.
What are your lead times?
Standard items:
• 10-50 sets: 5 working days
• 50-100 sets: 7-10 working days
• 200-500 sets: 10-15 working days
Custom designs or packaging may require an additional 3-10 working days.
What payment methods do you accept?
We accept TT, Western Union, and L/C payments. Our company participates in Trade Assurance to protect your order security.
