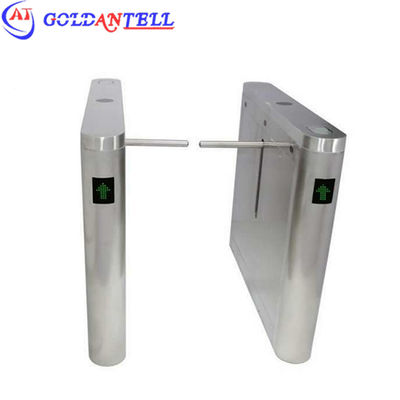

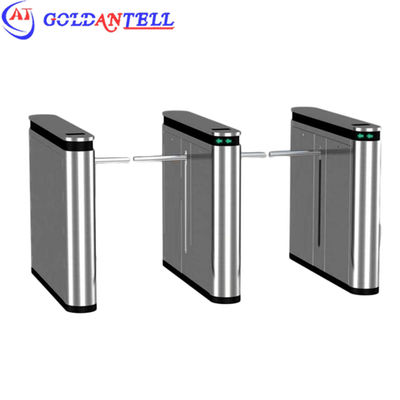

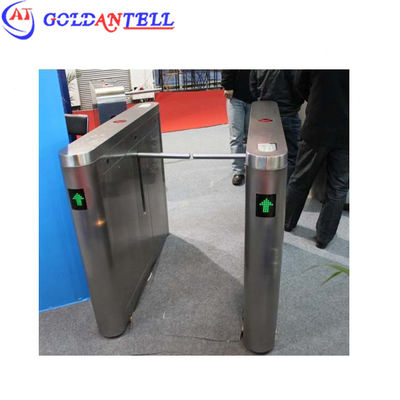

Automatic 2-Way High-Speed Flap Barrier Turnstile with 0.2s Open/Close Time and RS-232 RS485 Communication
| Tempat asal | Guangdong, Tiongkok |
|---|---|
| Nama merek | Goldantell |
| Sertifikasi | CE/ROHS/FCC/IS9001 |
| Nomor model | GAT-187 |
| Kuantitas min Order | 1 |
| Harga | Dapat dinegosiasikan |
| Kemasan rincian | Dikemas dalam karton terlebih dahulu, lalu diperkuat dengan kotak kayu ekspor untuk kemasan luar |
| Waktu pengiriman | 7-9 hari kerja setelah menerima pembayaran Anda |
| Syarat-syarat pembayaran | L/C,T/T,Western Union |
| Menyediakan kemampuan | 1.000 pcs per bulan |
Hubungi saya untuk sampel gratis dan kupon.
ApaAPP:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Waktu buka penghalang | 0,2 dtk | Antarmuka Komunikasi | RS-232, RS485 |
|---|---|---|---|
| Arah operasi | 2 arah | motor penghalang | Motor tanpa sikat |
| Tingkat perlindungan | IP54 | Catu Daya | AC220 ± 10%V 50Hz atau AC110 ± 10%V 60Hz |
| Bahan | Baja Tahan Karat 304 | Ukuran | 1200 * 280 * 1000mm |
| Suhu kerja | -15 ° C hingga 75 ° C. | Sinyal input | DC12V/Dry/Contact/RS485/RS232/Remote |
| Lebar saluran | Single Wing 600mm; Sayap ganda 900mm | Laju aliran | 30-35 orang/menit (terbuka), 25-30 orang/menit (tertutup) |
| Waktu Reset | default 10s | Hidup berlari | 3 juta siklus |
| Motor penggerak | Motor DC Brushless | ||
| Menyoroti | 2-Way Flap Barrier Turnstile,0.2s Open/Close Time Security Turnstile Gate,RS-232 RS485 Communication Automatic Turnstile |
||
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
Automatic Electrical Dropbox Turnstile Flap Barrier High-Speed 2-Way Exterior Door for Amusement Park
High-speed automatic electrical dropbox turnstile designed for amusement parks and exterior door applications with 2-way access control.
Working Performance
- Heavy-duty, high-size design prevents climbing over the gate for unauthorized access
- Anti-crash function maintains smooth operation even with forceful impacts
- Auto-close timer protection prevents unauthorized entry after delay period
- Emergency evacuation feature automatically opens arms during power failure
- Easy integration with RFID wristband/token/card readers, barcode scanners, or fingerprint readers
- Self-examination and alarm functions for convenient maintenance
- Programmable running status via main board keyboard
Technical Specifications
| Optimal flow rate | 30-35 persons/min (open), 25-30 persons/min (closed) |
|---|---|
| Cabinet dimension | 1200(L)*280(W)*1000(H)mm |
| Open type | Push button/access control |
| Passing direction | Single in/out or bidirectional |
| Working temperature | -15°C to +75°C |
| Communication | Standard RS485, TCP/IP |
| Reset time after breakdown | Default 10s (adjustable) |
| Wing material | Stainless steel |
| Access readers | RFID cards, fingerprint, barcode, ticket scanners |
| Input connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms |
| Optional functions | Coin controller, counter, sound alarm, speakers |
| Running life | 3 million continuous operations |
| Protection grade | IP54 |

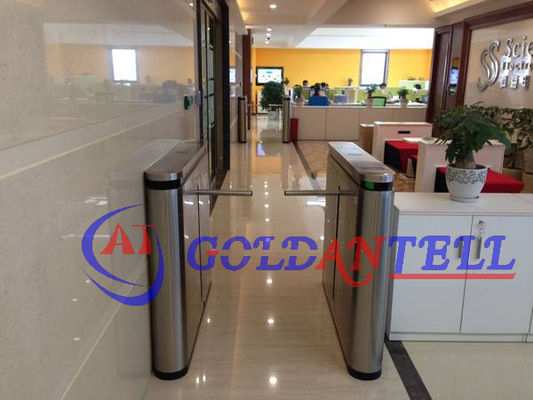

Project Sites
Public Places: Lobby entry, subway, airports, stations, libraries, bookstores, parks, exhibition halls, stadiums, museums, apartments, residence areas, offices, commercial buildings.
Entertainment Places: Movie theaters, fitness halls, country clubs, fairgrounds, clubs, swimming halls, fitness gyms.
Business Organizations: Hotels, factories, banks, prisons, hospitals, schools, enterprise entrances and exits.
Access Control System Integration
Manufacturing Process
Security Packaging
Trade Terms
- Offer valid for 30 days
- Delivery within 7 days after payment
- Payment methods: T/T, LC, Western Union, Escrow, PayPal
- Packaging: Carton box + wooden case/crate
Delivery Details
- Sea shipping: 15-60 days depending on destination
- Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
- Air cargo: 2-7 days
Why Choose Us
Our Pre-sale & After-sale Service
- Pre-sale: Detailed product information and consultation
- On-purchase: Production updates with photos and testing videos
- After-sale: Installation guides and product manuals
- OEM/ODM: Customization of logo, size, color, etc.
- Professional support: 16-hour response to inquiries
Contact Details
Contact person: Vivian Zhou
WhatsApp: +86 13699796334
Wechat: junziyouxin
Skype: goldantell02
