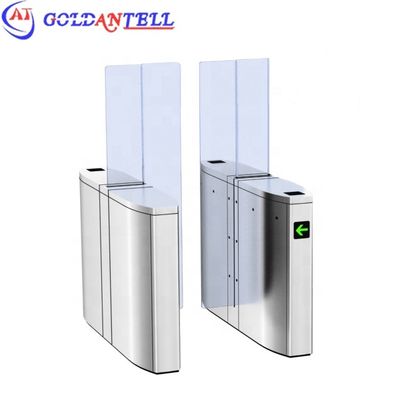

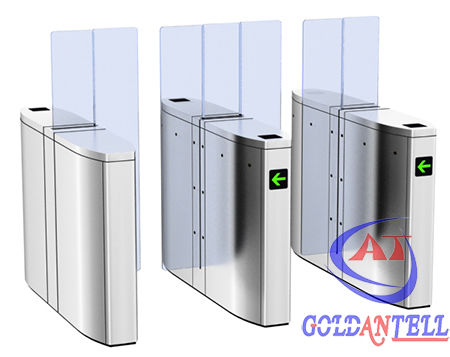

1.8M Full High Turnstile with 304 Stainless Steel Construction and IP54 Protection for Secure Dual Lane Entry

Tempat asal	Guangdong, Tiongkok
Nama merek	Goldantell/OEM
Nomor model	Seri GAT-619
Kuantitas min Order	1
Harga	Dapat dinegosiasikan
Kemasan rincian	Dikemas dalam karton terlebih dahulu, lalu diperkuat dengan kotak kayu ekspor untuk kemasan luar
Waktu pengiriman	7-9 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran	T/T, Western Union, l/c
Menyediakan kemampuan	1.000 pcs per bulan

Hubungi saya untuk sampel gratis dan kupon.

ApaAPP:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

Detail produk

Kontrol akses	Kartu RFID, kode QR	Kecepatan penghalang	0,2 dtk
Antarmuka Komunikasi	RS-232, RS485, TCP/IP	Arah operasi	2 arah
motor penghalang	Motor tanpa sikat	Tingkat perlindungan	IP54
Fungsi putar	Anti-Pinch, Penghindaran Tabrakan, Anti-Tailgating	Dimensi	14003101000mm (LLT)
Tipe Tampilan	Layar LCD	Lebar jalur	55-130cm
Catu Daya	AC 110 ~ 240V 10% 50/60Hz	Bahan perumahan	Baja Tahan Karat 304
Bahan lengan	10mm akrilik, kaca tempered atau baja	Sensor inframerah	6 ~ 10 pasang
Laju aliran	40 orang/menit (terbuka), 35 orang/menit (ditutup)
Menyoroti	1.8M Full High Turnstile , 304 Stainless Steel Turnstile , IP54 Protection Turnstile

Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.

Tinggalkan pesan

Deskripsi Produk

Dual Lane Entry Staff Time Attendance System with 1.8M Full High Turnstile NFC Reader Turnstiles

Staff Time Attendance 1.8meter Full High Turnstile NFC Reader Double Lane Entry System

Full High Turnstile Features

Goldantell intelligent series turnstile gates with excellent design and performance, utilizing innovative technology and high-quality materials
Electric control with DC motor for stable, reliable operation and low failure rate
Ultra-high light traffic indicator with directional instructions using bright LED lights
Compatible with Face, thermal, RFID, fingerprint, QR/barcode, and ESD access control systems
Custom OEM/ODM services available for size, shape, and other specifications
Constructed with 304 stainless steel, IP54 waterproof rating, elegant anti-rust design

Full High Turnstile Specifications

Specification	Details
Cabinet dimension	1400 (L) x 310 (W) x 1000 (H) mm
Cabinet material	304 stainless steel (316 ss can be custom-made)
Switching power supply	AC220±10%V 50Hz or AC110±10%V 60Hz
Opening/closing time	0.2s
Arm material	Thickness 10mm Acrylic, or tempered glass or steel (custom)
Access mode	Single in/out or Bidirectional
Passthrough Width	900mm (or custom)
Mechanism	DC Brushed motor+Clutch (or Servo motor)
Communication interface	RS485, TCP/IP
Infrared sensor	6~10 pairs
Optimal flow rate	40 persons/min (open), 35 persons/min (closed)
Reset time after break down	Default 10s (adjustable)
MCBF	5,000,000 Cycles
Working humidity	30%~95%

Security Features

Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
Bi-directional or single way operation options
Auto-open gate during power failure to meet fire protection requirements
Anti-Tail gaiting feature to prevent unauthorized entry
Wings open automatically during power interruption
Fast opening and closing time
Built-in mechanical lock to prevent forced opening
Multiple pairs of IR sensors

Ideal for:

Banks
Fitness Gyms
Factories
Hotels
Movie theaters
Office buildings

Frequently Asked Questions

Can I have a system that only supports ESD test without software?

Yes, there are more options available. Our catalog can help you make a choice.

What language versions are available for the software system?

English and Chinese versions are available.

Can I get a software manual or installation instructions?

Yes, English version manuals are available.

Can I customize the system?

Yes, we offer OEM/ODM services with extensive experience in government projects.

What are your payment terms?

100% payment before shipment. We provide photos/videos of products before final payment.

What are your delivery terms?

EXW, FOB, CFR, CIF, DDU available.

Packing Details

Exported product: Wooden case package with pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging
Professional, environmentally friendly packaging services provided
