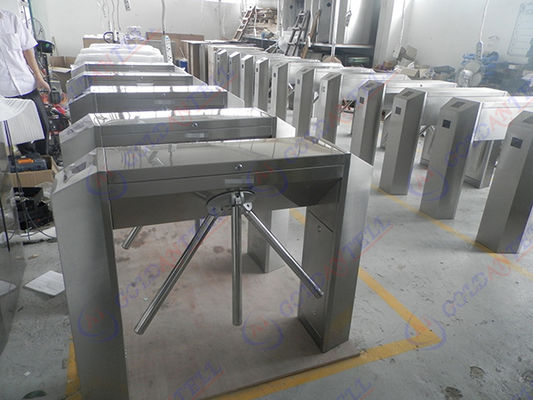

QR Code Card Reader Tripod Turnstile with 0.4s Barrier Open/Close Time and 3 Million Operations Life
Hubungi saya untuk sampel gratis dan kupon.
ApaAPP:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Jenis Kontrol Akses | Sistem ESD, Sidik Jari, Kartu RFID | Waktu buka penghalang | 0,4 dtk |
|---|---|---|---|
| Antarmuka Komunikasi | RS-232, RS485, TCP/IP | Arah operasi | 2 arah |
| motor penghalang | Motor yang disikat | Fungsi putar | Menghindari Tabrakan |
| Suhu Operasional | -10 ℃ -60 ℃ | Peringkat tahan air | IP54 |
| Catu daya | AC220V/110V, 100~240V | Dimensi Perumahan | 1200 * 280 * 1000mm |
| Bahan | Baja Tahan Karat 304 | Panjang lengan | 51cm |
| Lulus lebar | 600mm | Motor penggerak | Katup solenoida DC24V |
| Kehidupan Lari Normal | 3 juta | ||
| Menyoroti | QR Code Card Reader Tripod Turnstile,0.4s Barrier Open/Close Time Security Turnstile Gate,3 Million Operations Life Access Control Turnstile |
||
Deskripsi Produk
QR Code Card Reader Half Height Double Face Recognition Mechanism Tripod Turnstile Zk
Standard Working Performance
- Turnstile can be configured by pressing the button on the main control board
- Auto-lift-arm function: For fully automatic models, the arm lifts automatically with alert when power is restored
- Auto-drop-arm function: The arm drops down automatically (default) or allows free passage when power is off
- Automatic Reset Functions: Cancels authorization if user doesn't pass within set time (adjustable 1-60s)
- Compatible with various systems: door access control, consumption systems, biometric recognition, ESD systems
Technical Parameters
| Size of housing | 1200 L * 280 W * 1000 H (mm) | Material | 304 stainless steel |
|---|---|---|---|
| Direction | Single or bi-directional (optional) | Arm length | 51cm |
| Pass width | 600mm | Waterproof | IP54 |
| Power Supply | 100~240 volt | Drive motor | DC24V solenoid valve |
| LED light | Direction arrow (optional) | Normal running life | 3 million cycles |
Key Features
- Low noise operation with no mechanical impact
- Single or bi-directional configuration options
- High-speed operation with quick response
- Premium design with durable construction
- Robust, rigid, anti-rust and long-lasting
- Smooth working system with self-test function
Additional Functions
- Counting function available (counter)
- Information display option (LCD screen)
- Audible sound prompt (speaker)
- Invalid entry alarm
- Auto-lift-arm function (full automatic models)
Typical Applications
Subway Stations, Airports, Tourism Sites, Sports Venues, Exhibitions, Swimming Pools, Residential Areas, Corporate Entrances, Attendance Systems, Security Checkpoints, Fee Management, Special Access Control
Our Service Commitment
- Pre-sale: Detailed product information and consultation
- During purchase: Production updates with photos and testing videos
- After-sale: Installation guides, manuals, and instructional videos
- Customization: OEM/ODM services including logo, size, and color
- Support: 16-hour response window for inquiries
Frequently Asked Questions
Q: Can your machine work with our card reading system or other access systems?
A: Yes, our turnstiles are compatible with various access control systems.
Q: Can your machine work with Turnstile Doors?
A: Absolutely, integration with turnstile doors is supported.
Q: Is after-sale support available?
A: Yes, we provide warranty service plus ongoing technical support.
Q: Does your machine support WiFi?
A: Yes, we support Wired, WiFi, and 4G module connections.
Q: What is your production lead time?
A: Standard items: 7-15 working days depending on quantity. Custom items require 3-10 additional days.
