Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply
Hubungi saya untuk sampel gratis dan kupon.
ApaAPP:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Lebar bagian | 550mm-600mm | Lulus kecepatan | 30-40 orang/mnt |
|---|---|---|---|
| Catu daya | 220~240/110V(AC) | Konsumsi Daya Max | 60w |
| Frekuensi | 50~60Hz | Perlindungan IP | IP54 |
| Suhu kerja | -15 ~ 75 ° C. | Ketebalan material | 1.5mm |
| Diameter tiang | 280mm | Tinggi tiang | 1200mm |
| Panjang lengan | 500-900mm | Berat pengemasan | 70kg |
| Motor Mengemudi | Motor DC 24V yang disikat | Interval lengan | 1-2 |
| Kelembaban yang bekerja | 5-95% | ||
| Menyoroti | 550mm-600mm Passage Width Revolving Tripod Turnstile,30-40 Persons/Min Pass Speed Manual Barrier Gate,220~240/110 V(AC) Power Supply Security Turnstile Gate |
||
Deskripsi Produk
Revolving Tripod Turnstile - Manual Barrier Gate for Intelligent Access Control
Our high-quality revolving tripod turnstile and manual barrier gate provide secure, intelligent access control solutions for various facilities.
Technical Specifications
| Parameter | Value |
|---|---|
| Pole diameter | 280mm |
| Pole height | 1200mm/3.44 feet |
| Arm length | 500 to 900mm (default 500mm) |
| Packaging weight | 70kg |
| Material | 304 stainless steel, 2.0mm thickness, brushed or polished finish |
| Power supply | 220/110 V AC, 50Hz |
| Driving motor | Brushed DC motor (24V) |
| Input interface | Dry contact signal or 12V level signal or 12V pulse signal (pulse width ≥100ms) |
| Passage speed | 40 persons/minute (open); 30 persons/minute (closed) |
| Working temperature | -15 to 75°C/-22 to 140°F |
| Working humidity | 5 to 95% |
| Communication interface | RS485 |
Product Features
- Self-diagnostic function for problem detection
- Multiple operation modes including bi-directional card reading
- Automatic arm opening during power failure
- Adjustable closing delay (1-60 seconds)
- Auto-reposition function with configurable timeout
- Alarm system for unauthorized access attempts
- RS485 interface for remote control
- Anti-rush mechanism to prevent forced entry
- Dual anti-pinch protection (photocell and mechanical)
- Standard electrical interfaces for various reader integration
- Passenger counting with LED display
- Direction indicator for user guidance
- Optional memory function for card reading
- Population control capability via software
- Quiet operation with stable performance

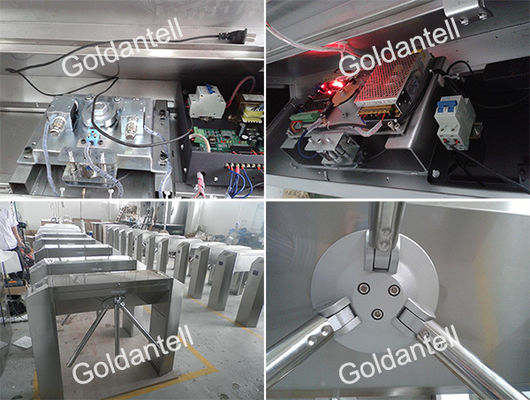

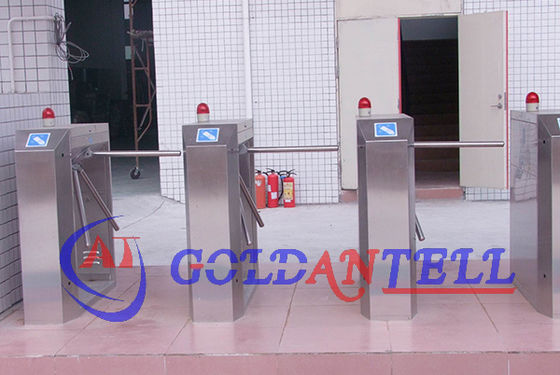

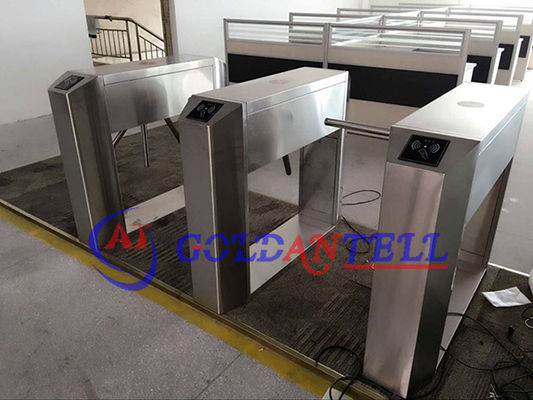

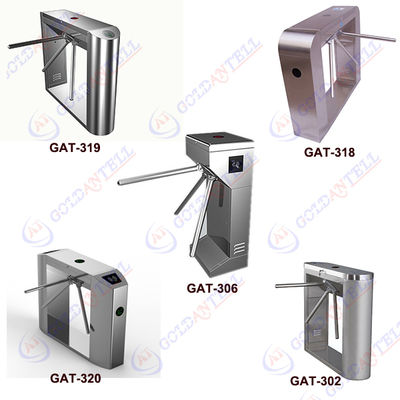

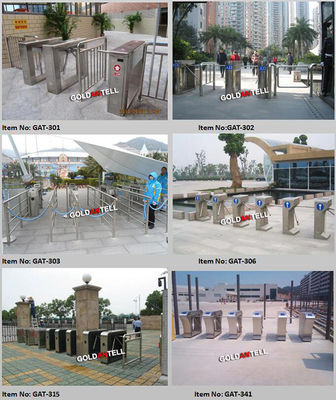

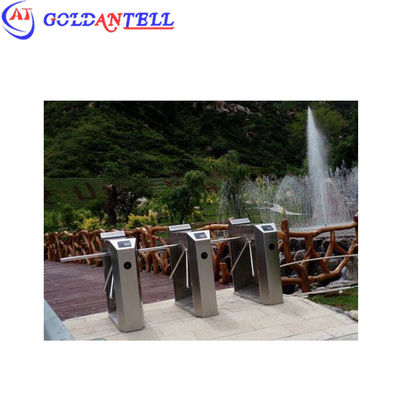

Product Images
About Goldantell Technologies
Shenzhen Goldantell Technologies Co., Ltd is a leading manufacturer and exporter of intelligent turnstile and parking management systems with over 8 years of industry experience.
Our product range includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and complete security access control systems. We have successfully exported to more than 50 countries worldwide.
Certifications
Global Reach
We have successfully supplied turnstiles to over 50 countries including:
United States, Canada, Brazil, Chile, Australia, New Zealand, Germany, Netherlands, Switzerland, Sweden, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya, Nigeria, Egypt, and many more.
Frequently Asked Questions
Can you install RFID card reader on the turnstile?
Yes, we can install RFID card reader systems, fingerprint readers, token systems, ESD systems, and other access control solutions.
What is your warranty and after-sales service?
We provide a 12-month quality guarantee with English-speaking support staff for all after-sales services.
What is your production lead time?
Standard items:
- 10-50 sets: 5 working days
- 50-100 sets: 7-10 working days
- 200-500 sets: 10-15 working days
Custom designs require 3-10 additional working days.
What payment methods do you accept?
We accept TT, Western Union, L/C, and participate in Trade Assurance for order security.
What packaging options are available?
Standard carton packaging with optional wooden crate or closed wooden package.
Do you offer OEM services?
Yes, we provide custom turnstile designs, logo printing, and retail box customization.
Delivery Information
Shipping options:
- Sea freight: 15-60 days (varies by destination)
- Express (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
- Air cargo: 2-7 days
Our Services
- 24-hour response time for all inquiries
- English-speaking sales and support team
- Comprehensive OEM services including custom designs
- Expert engineering support for installation and operation
Contact Us
For factory-direct pricing and high-quality turnstile solutions, please contact our sales team.
