IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate

Gambar besar : IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	Goldantell
Nomor model:	GAT-660

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	2
Harga:	$855-1,205

Kontak

Detil Deskripsi produk

Tingkat aliran:	35 atau 40 orang per menit	Kecepatan geser:	0,6 Detik
Catu daya:	AC 100-240V	Peringkat IP:	IP54
Lebar jalur:	600mm (maks: 900mm)	Dimensi:	1200 * 300 * 1000 (mm)
Bahan:	304, 316 stainless steel	Bahan sayap:	Akrilik
Komunikasi:	TCP/IP, RS485	Ukuran produk:	14002001000mm
Arah:	tunggal atau dua arah (opsional)	Waktu Reset:	10 detik
Hidup berlari:	3 juta	Lingkungan kerja:	-10 ℃ ~ 70 ℃
Motor penggerak:	Motor sikat DC24V
Menyoroti:	IP54 Rated Swing Barrier Gate , 0.6 Second Sliding Speed Swing Barrier Gate , 35-40 Persons/Minute Swing Barrier Gate

Fast Speed Lane Crowd Control Sliding Swing Turnstiles Gate

High-performance sliding swing turnstiles designed for efficient crowd control in various public and commercial spaces. Features rapid operation, durable construction, and flexible configuration options.

Applications

Public Spaces:

Lobby entries, Subways, Airports, Stations
Libraries, Bookstores, Parks, Exhibition halls
Stadiums, Museums, Apartments, Residential Areas
Offices, Commercial buildings

Entertainment Venues:

Movie theaters, Fitness centers, Country clubs
Fairgrounds, Clubs, Swimming pools, Gyms

Business Organizations:

Hotels, Factories, Banks, Prisons
Hospitals, Schools, Enterprise entrances

Application Examples

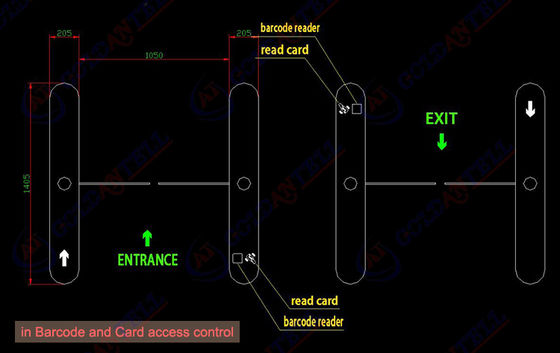

Single Lane Configuration

Multiple Lane Configuration (2, 3, 4 or more channels)

Technical Specifications

Product Model	GAT-660
Product Size	14002001000mm
Path Width	600mm or 900mm (per pair)
Direction	Single or bi-directional (optional)
Operation Speed	0.6 second opening/closing time
Passage Rate	40 persons/min (open), 25-30 persons/min (closed)
Reset Time	10 seconds after breakdown
Service Life	3 million cycles
Operating Environment	Indoor/outdoor (with cover) -10℃~70℃
Drive Motor	DC24V brush motor

Key Features

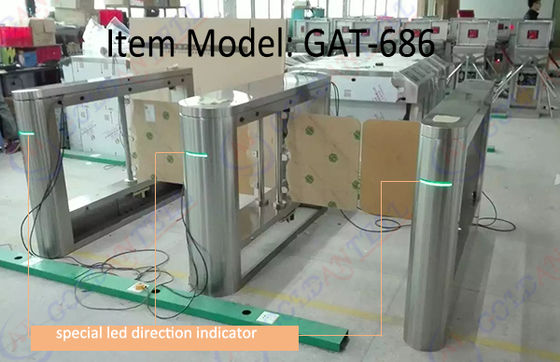

Directional LED optical signals (Green Arrow/RED Cross indicators)
Fault self-check and alarm functions for easy maintenance
Specially processed mechanism for enhanced durability
Always open or close modes with automatic retraction during fire alarms
Ensures rapid, efficient and safe access control
Compatible with various access systems (Magnetic card, Barcode, ID card, IC card)
Standard photo-electric beams for all models

Product Dimensions

Product Classification

Vertical shape
Bridge shape (this model)
Pillar shape (tube type)
Single motor (for single/multiple passageways) or Double motors (for multiple passageways)

Professional Packaging
