High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate

  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
  • High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate
Tempat asal Guangdong, Cina
Nama merek Goldantell
Nomor model GAT-686
Kuantitas min Order 2
Harga $1,164

Hubungi saya untuk sampel gratis dan kupon.

ApaAPP:0086 18588475571

Wechat wechat: 0086 18588475571

skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

x
Detail produk
Jenis Kontrol Akses Kartu RFID, kode QR Waktu buka penghalang 0,2 dtk
Antarmuka komunikasi RS-232, TCP/IP, RS485 Arah operasi 2 arah
motor penghalang Motor tanpa sikat Bahan Baja tahan karat, 304, 316 stainless steel
Tingkat perlindungan IP54 Kecepatan geser 0,6 Detik
Catu daya AC 100-240V Lebar jalur 60cm, 90cm (kustom 90 ~ 120cm)
Laju aliran 35-40 orang per menit Dimensi 1400 * 200 * 1000 mm
Bahan sayap Akrilik Waktu Reset 10 detik
Suhu kerja -10 ℃ ~ 70 ℃
Menyoroti

0.6s Sliding Speed Swing Turnstile Gate

,

IP54 Protection Access Control Turnstile

,

35-40 Persons/Minute Security Turnstile
Tinggalkan pesan
Deskripsi Produk
2D Barcode Ticket System Gate with RFID Card Swipe Turnstile
Product Description

High-performance swing access control turnstile for marine parks and secure facilities, compatible with 2D barcode tickets, QR codes, and RFID card systems.

Applications

Access Width: Within 900mm space for comfortable pedestrian passage

  • Public Places: Lobby entries, subways, airports, stations, libraries, parks, exhibition halls, stadiums, museums, apartments, offices, and commercial buildings
  • Entertainment Venues: Movie theaters, fitness centers, country clubs, fairgrounds, clubs, swimming pools, and gyms
  • Business Organizations: Hotels, factories, banks, prisons, hospitals, schools, and enterprise entrance/exit attendance systems

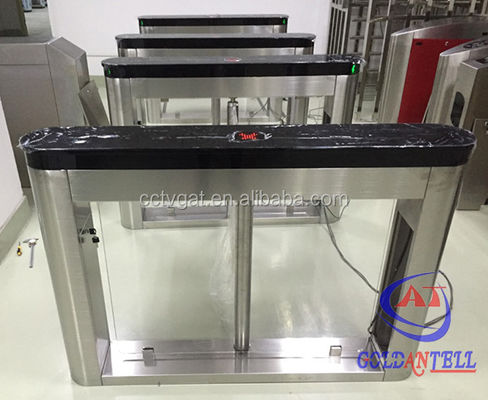

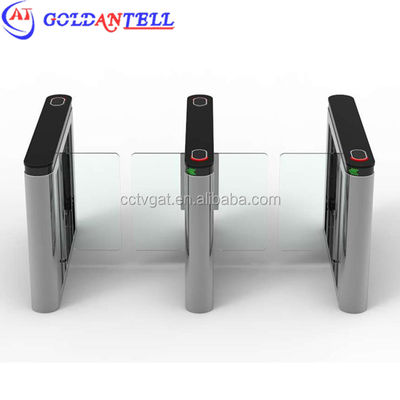

High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 0 High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 1
Technical Specifications
Type High speed gate & full automatic Swing Turnstile
Product Model GAT-686
Product Size 1400×200×1000mm
Path width Within 900mm (for one pair)
Direction Single or bi-directional (optional)
Time of opening/closing 0.6 second
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down 10 seconds
Normal running life 3 million cycles
Working environment Indoor/outdoor (with shelter) -10℃~70℃
Drive motor DC24V brush motor
Key Features
  • Self-diagnostic and alarm functions for easy maintenance
  • Programmable operation status via control board
  • Anti-pinch safety protection
  • Visual and audible alarms for unauthorized access
  • Automatic locking until receiving opening signal
  • Adjustable door synchronization
  • Automatic reset function with adjustable timing
  • Optional LCD information display
  • Audible operation prompts
Construction & Materials
  • 304 stainless steel construction
  • IP54 waterproof rating
  • Elegant, anti-rust design
  • CE Certified
  • Fail-safe operation (opens when power is off)
  • Compatible with multiple access control systems (RFID, fingerprint, QR/barcode, ESD)

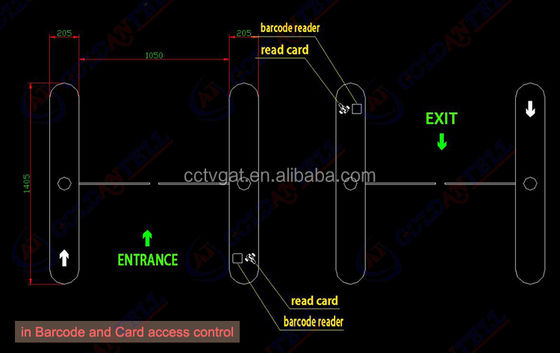

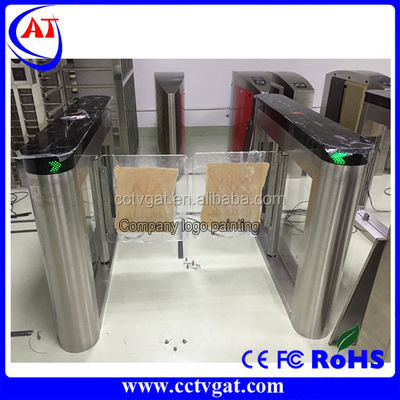

High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 2 High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 3
Customization Options
  • Company logo printing
  • Custom dimensions and shapes
  • Optional LED indicators and LCD displays
  • Special color configurations
Company Information

Shenzhen Goldantell Technologies Co., Ltd is a leading manufacturer of intelligent turnstiles and parking management systems with over 8 years of industry experience. Our products are exported to more than 50 countries worldwide.

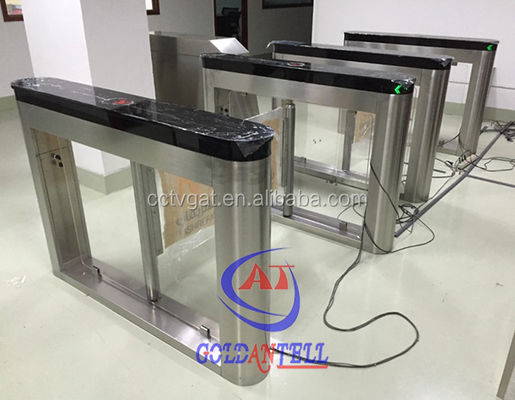

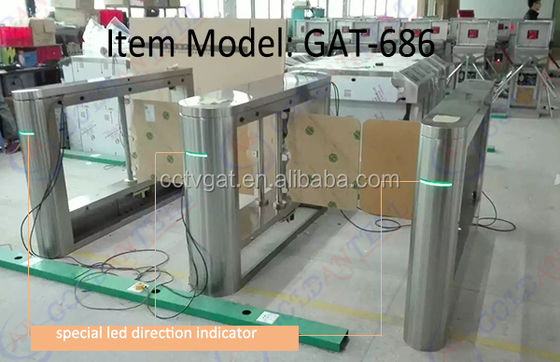

High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 4 High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 5
