Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate
Hubungi saya untuk sampel gratis dan kupon.
ApaAPP:0086 18588475571
Wechat wechat: 0086 18588475571
skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Mengalihkan catu daya | AC220 ± 10%V 50Hz atau AC110 ± 10%V 60Hz | Bahan | 304 stainless steel |
|---|---|---|---|
| Ukuran | 1200 * 300 * 1000mm | Suhu kerja | -15 ° C hingga 75 ° C. |
| Sinyal input | DC12V/Dry/Contact/RS485/RS232/Remote | Lebar saluran | Single Wing 600mm; Sayap ganda 900mm |
| Motor penggerak | Motor DC Brushless | Waktu pembukaan flap | 0.6-0.8s |
| Panjang sayap | 285mm | Mode akses | lajang masuk/keluar atau dua arah |
| Laju aliran | 40 orang/menit (terbuka), 25-30 orang/menit (ditutup) | Waktu Reset | default 10s |
| Peringkat IP | IP54 | Flap Auto-Reverse | Sensor IR mendeteksi rintangan |
| Kegagalan daya darurat | Flaps terbuka secara otomatis | ||
| Menyoroti | IP54 Waterproof Optical Turnstile,1200x300x1000mm Security Turnstile Gate,Intelligent QR Code Access Flap Barrier Turnstile |
||
Deskripsi Produk

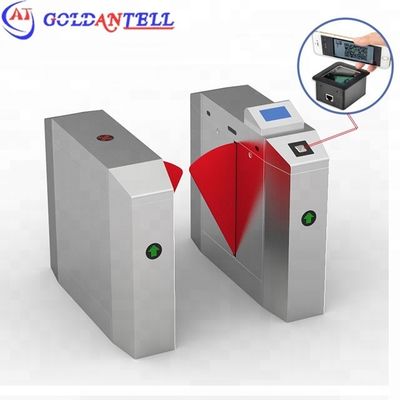

Entrance Intelligent QR Code Access Door Safety System Optical Turnstile Mechanism
Goldantell intelligent Series of turnstile gates with excellent design and good performance are produced by utilizing innovative technology and high quality material, are available with unique features for wide range of security, commercial and industrial applications to meet customer satisfaction.
Key Features
- Constructed with 304 stainless steel (316 stainless steel available upon request)
- IP54 waterproof rating with elegant, anti-rust design
- CE Certified for quality assurance
- Compatible with RFID, fingerprint, QR/barcode, and ESD access control systems
Safety Features
- Anti-pinching protection: Flap wing automatically reverses when IR sensor detects obstacles
- Anti-tailgating/anti-retrogradation: Flap pauses when obstacles are detected during closing
- Auto-close timer: Prevents unauthorized entry after delay period
- LED indicators: Visual status display (green arrow = available, red cross = closed)
- Emergency evacuation: Flaps open automatically during power failure
- Flexible integration: Supports installation of RFID readers, barcode scanners, or fingerprint readers
Technical Specifications
| Item No. | GAT-206 |
|---|---|
| Cabinet Dimensions | 1200 (L) × 300 (W) × 1000 (H) mm |
| Material | 304 stainless steel (316 ss optional) |
| Power Supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Flap Operation Time | 0.6-0.8 seconds |
| Flap Length | 285 mm (extendable for disabled access) |
| Access Mode | Single in/out or bidirectional |
| Flow Rate | 40 persons/min (open), 25-30 persons/min (closed) |
| Reset Time | Default 10s (adjustable) |
| Display | 7-inch screen shows date, time, and entry events |
Customization Options

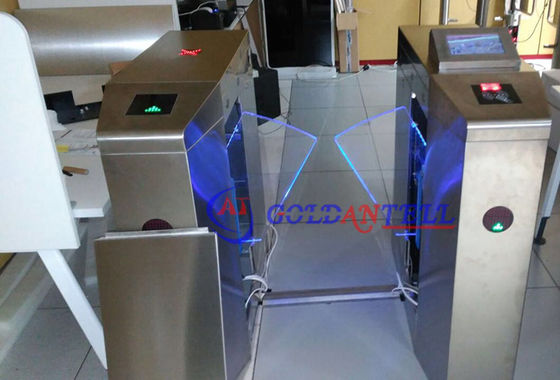

- Flap arm colors available in red, blue, black, or transparent with LED lighting
- Dual reading window design for RFID reader and barcode scanner
System Demonstration Videos
Facial recognition
RFID Card Reader
ESD Tester + IC/ID card
Fingerprint Reader
QR Code Access Control
All our turnstile gates can be equipped with QR code readers (dual RFID card reader optional).
Tripod Turnstile Type
Swing Turnstile Type
Applications
Our flap turnstile barrier series are suitable for:
- Subway stations and transportation hubs
- Airports and seaports
- Tourist attractions and sports venues
- Exhibition centers and swimming halls
- Residential areas and corporate entrances
- Attendance and access control systems
Note: Optical turnstiles with colorful LED lighting are not recommended for outdoor or seaside installations.
Trade Terms
- Offer valid for 30 days
- Delivery within 7 days after payment confirmation
- Payment methods: T/T, LC, Western Union, Escrow, PayPal
- Packaging: Carton box + wooden case/crate
Delivery Details
- Sea freight: 15-60 days (varies by destination)
- Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
- Air cargo: 2-7 days
