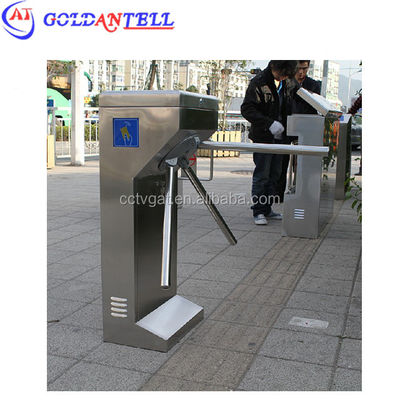

Tripod Turnstile Gate with RFID, 30-35 Persons/Min, IP54

Gambar besar : Tripod Turnstile Gate with RFID, 30-35 Persons/Min, IP54

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	Goldantell/OEM
Nomor model:	GAT-306

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	2
Harga:	$588

Kontak

Detil Deskripsi produk

MCBF:	2.500.000 siklus	Kelembaban relatif:	≤ 95% bebas koagulasi
Suhu kerja:	-15 ° C hingga 75 ° C.	Power off pagar:	Ya
Sinyal input:	DC12V/Dry/Contact/RS485/RS232/Remote	Perlindungan IP:	IP54
Lulus kecepatan:	30-35 orang/menit	Lebar saluran:	600mm
Motor penggerak:	Motor DC Brushless	Dimensi:	4203301000mm
Catu daya:	AC220V ± 10V, 50Hz	Sudut ayunan:	0°-180°
Jarak komunikasi:	≤1200m	Koneksi masukan:	+Sinyal level 12V atau pulsa lebar> 100ms pulsa DC12V, arus> 10mA
Bahan:	Sus304
Menyoroti:	Tripod turnstile gate with RFID , High capacity tripod turnstile gate , IP54 rated tripod turnstile gate

Access Control Security Passage Automatic Barrier Supermarket Entrance Counter Turnstile Speed Gate with RFID Interface

High-performance automatic turnstile gate with RFID interface designed for secure access control in various commercial and public facilities.

Specifications

Item	Specification
Type	Auto
Dimension	4203301000mm
Power	AC220C±10V,50HZ
Swing angle	0°-180°
Operating Temperature	-15°C-75°C
Relative Humidity	<95%, No concretion
Communication Distance	≤1200m
Passing Speed	30-40 Persons/min
Input Connection	+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
Communication Connection	RS485 Communication
Material	SUS304
Protection class	IP54
Application	Subway Stations, bus stations, parks, schools, factories, Hoverports, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise's Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control

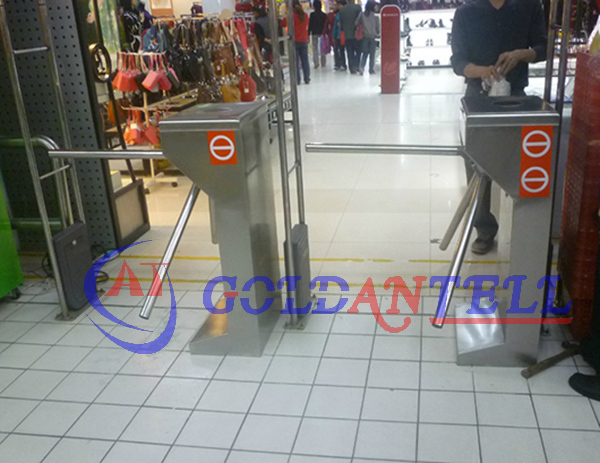

Ideal for Supermarket/Shopping Mall Entrances

Key Features and Functions

Problem-self-checking function
Multiple working modes: bi-directional card reading, single direction card reading, or free passage
Automatic arm opening during power failure and automatic holding when power returns
Adjustable arm closing delay (1-60 seconds)
Auto-reposition function with configurable passing time period
Alarm system for unauthorized passage attempts
485 interfaces for long-distance control
Anti-rush function keeps arm tightly held without open signal
Double anti-clipping protection: photocell and mechanical
Standard electrical interface for integration with various readers
Passenger counting with LED display
Direction display for user guidance
Card-reading with optional memory function
Population control capability via software
Quiet and stable operation

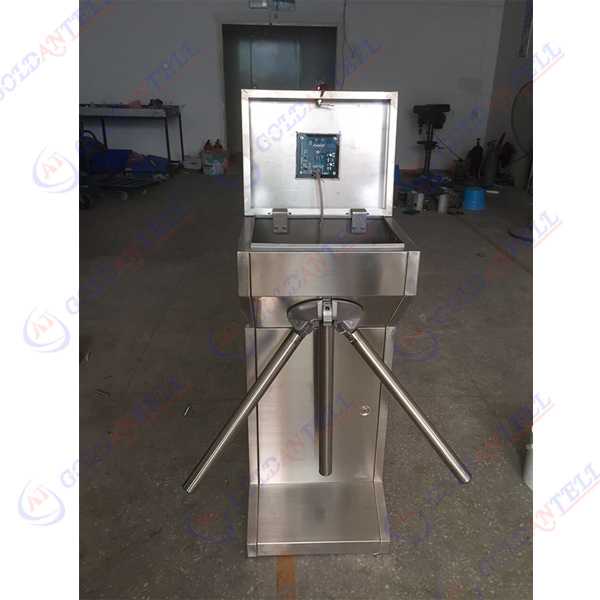

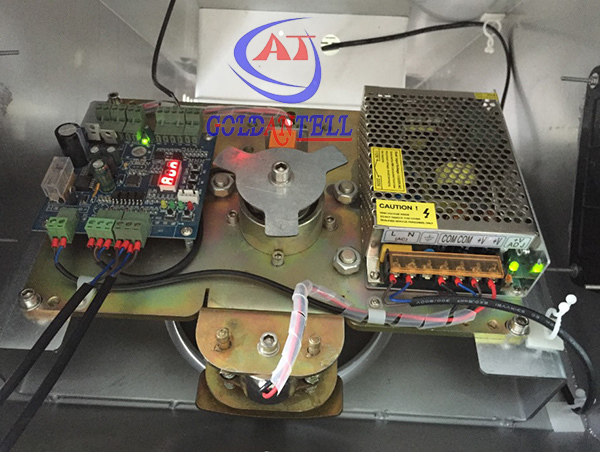

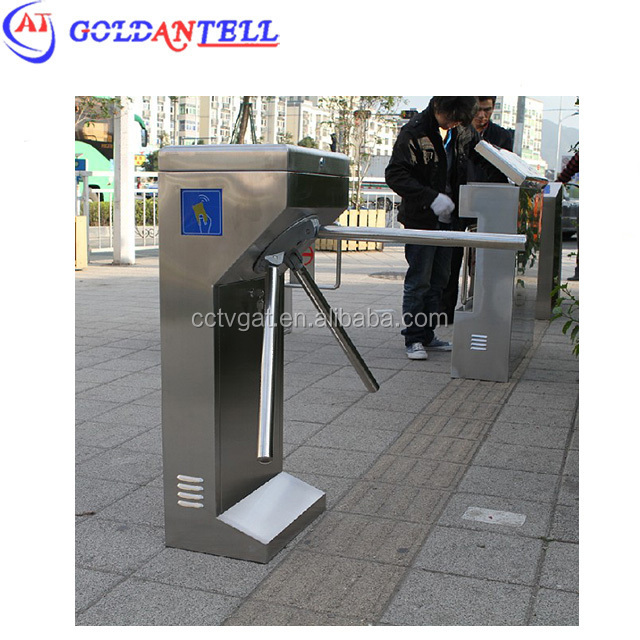

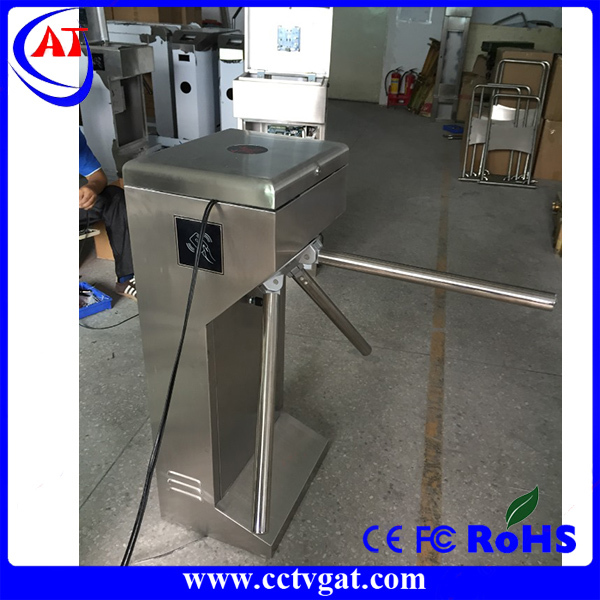

Product Details

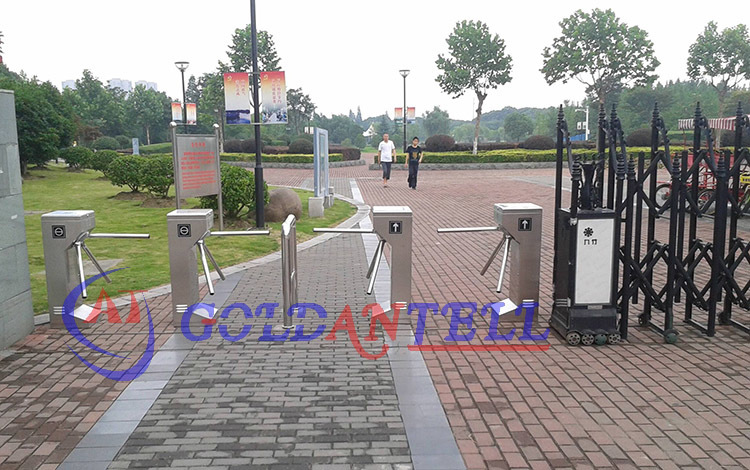

Project Installation Example

About Shenzhen Goldantell Technologies Co., Ltd

We are a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years' experience. Our product range includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and related security access control systems.

Our Certifications

Global Reach

We have exported our turnstiles to more than 50 countries including Brazil, Chile, Peru, Colombia, United States, Australia, Canada, European nations, Middle Eastern countries, and various African and Asian markets.
