Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Antarmuka komunikasi: | RS232, RS485 | Waktu buka penghalang: | 0.2 |
---|---|---|---|
Penghalang waktu tutup: | 0.2 | Jenis Kontrol Akses: | Kartu RFID |
motor penghalang: | Motor yang disikat | Tingkat perlindungan: | IP54 |
Bahan: | baja tahan karat | Arah operasi: | 2 arah |
Dimensi kabinet: | 1400 (l) x 300 (w) x 1000 (h) mm | Mengalihkan catu daya: | AC220 ± 10%V 50Hz atau AC110 ± 10%V 60Hz |
Lebar passthrough: | 900mm (atau kustom) | Mekanisme: | DC Brushed Motor+Clutch (atau Motor Servo) |
Sensor inframerah: | 6 ~ 10 pasang | Laju aliran optimal: | 40 orang/menit (terbuka), 35 orang/menit (ditutup) |
Kelembaban yang bekerja: | 30%~95% | ||

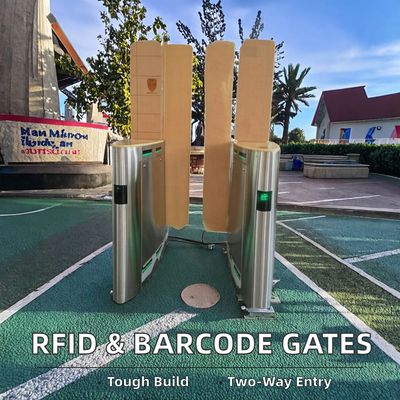

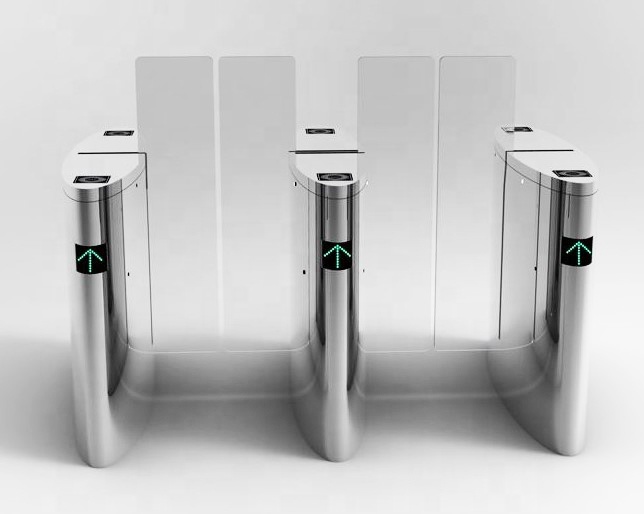

Menyoroti: | Stainless Steel Speed Gate Turnstile,RFID Speed Gate Turnstile,0.2s Barrier Speed Gate Turnstile |
1 | Cabinet dimension | 1400 (L) x 300 (W) x 1000 (H) mm |
---|---|---|
2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
4 | Opening/closing time | 0.2s |
5 | Arm material | Thickness 10mm Acrylic, or tempered glass or steel (custom) |
6 | Access mode | Single in/out or Bidirectional |
7 | Passthrough Width | 900mm (or custom) |
8 | Mechanism | DC Brushed motor+Clutch (or Servo motor) |
9 | Communication interface | RS485, TCP/IP |
10 | Infrared sensor | 6~10 pairs |
11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
12 | Reset time after break down | Default 10s can be changed to fit different demands |
13 | MCBF | 5,000,000 Cycles |
14 | Working humidity | 30%~95% |
