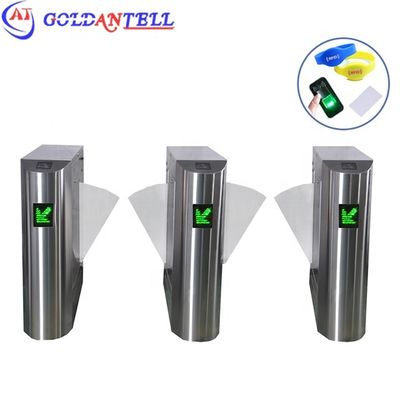

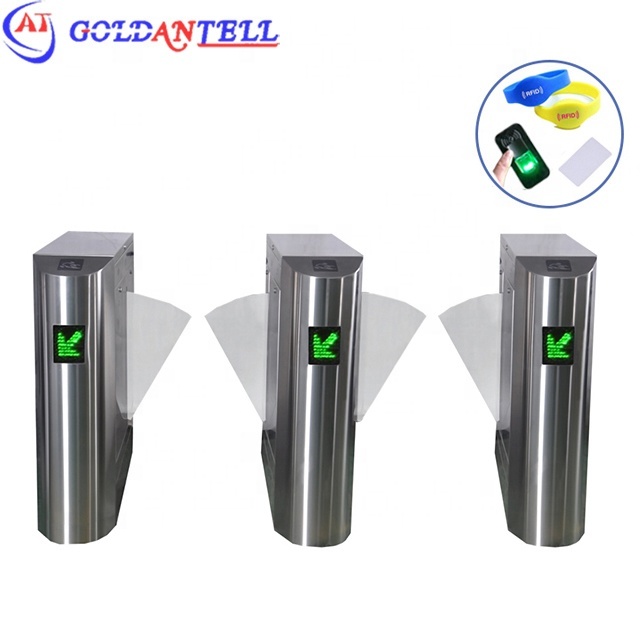

304 Stainless Steel Flap Barrier Gate 1200x300x1000mm NFC RFID Access

Gambar besar : 304 Stainless Steel Flap Barrier Gate 1200x300x1000mm NFC RFID Access

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	Goldantell
Sertifikasi:	CE/ROHS/FCC/IS9001
Nomor model:	GAT-218

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Dikemas dalam karton terlebih dahulu, lalu diperkuat dengan kotak kayu ekspor untuk kemasan luar
Waktu pengiriman:	6-9 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran:	L/C, T/T, Western Union
Menyediakan kemampuan:	2.000 pcs per bulan

Kontak

Detil Deskripsi produk

Mengalihkan catu daya:	AC220 ± 10%V 50Hz atau AC110 ± 10%V 60Hz	Bahan:	304 stainless steel
Ukuran:	1200 * 300 * 1000mm	Suhu kerja:	-15 ° C hingga 75 ° C.
Sinyal input:	DC12V/Dry/Contact/RS485/RS232/Remote	Lebar saluran:	Single Wing 600mm; Sayap ganda 900mm
Motor penggerak:	Motor DC Brushless	Waktu pembukaan flap:	0.6-0.8s
Panjang sayap:	285mm	Mode akses:	lajang masuk/keluar atau dua arah
Laju aliran:	40 orang/menit (terbuka), 25-30 orang/menit (ditutup)	Waktu Reset:	default 10s
Peringkat tahan air:	IP54	Flap auto-close:	Perlindungan pengatur waktu
Kekuatan darurat:	Auto-Open Selama Kegagalan
Menyoroti:	304 stainless steel flap barrier gate , NFC RFID access flap barrier , 1200x300x1000mm flap barrier gate

Outside Rainproof Door TCP/IP Two Ways NFC Timely Entry Zk Teco Turnstile Fingerprint

Product Overview

Goldantell intelligent series of turnstile gates feature excellent design and superior performance, manufactured with innovative technology and high-quality materials. These turnstiles offer unique features for a wide range of security, commercial, and industrial applications to meet customer satisfaction. Our pedestrian barrier gates provide security solutions for challenging requirements including anti-pinch, time attendance, and access management.

Standard Features

Constructed with 304 stainless steel (316 stainless steel available upon request)
IP54 waterproof rating with elegant, anti-rust design
CE Certified for quality assurance
Compatible with RFID, fingerprint, QR/barcode, and ESD access control systems

Safety Features & Functions

Anti-pinching protection: Flap wing automatically reverses when IR sensor detects obstacles
Anti-tailgating/anti-retrogradation: Flap pauses when obstacles are detected during closing
Auto-close timer: Prevents unauthorized entry after delay period
LED indicators: Visual status indication (green arrow/red cross) for lane availability
Emergency evacuation: Flaps automatically open during power failure
Reader integration: Supports installation of RFID, barcode scanners, and fingerprint readers

Technical Specifications

Item No.	GAT-218
Cabinet Dimensions	1200 (L) × 300 (W) × 1000 (H) mm
Material	304 stainless steel
Power Supply	AC220±10%V 50Hz or AC110±10%V 60Hz
Flap Operation Time	0.6-0.8 seconds
Access Mode	Single in/out or bidirectional
Flow Rate	40 persons/min (open), 25-30 persons/min (closed)
Display	7-inch screen showing date, time, and entry events

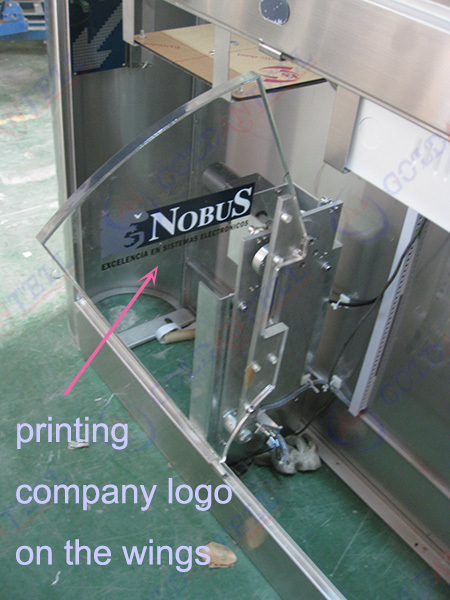

Customization Options

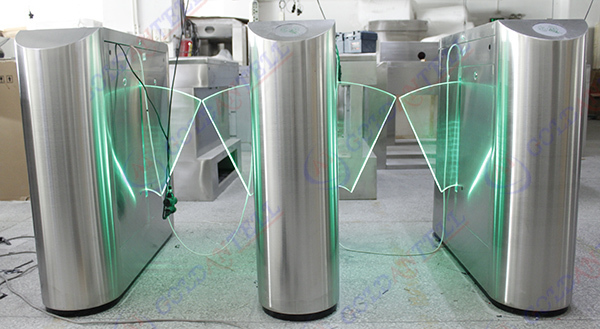

Flap arm colors available in red, blue, black, or transparent with LED lighting
Dual reading window design supports fingerprint + card reader combination

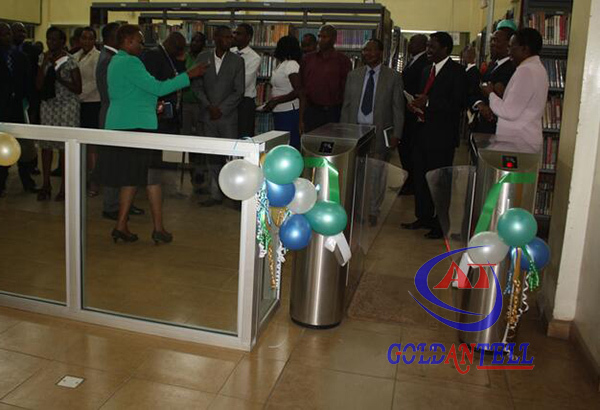

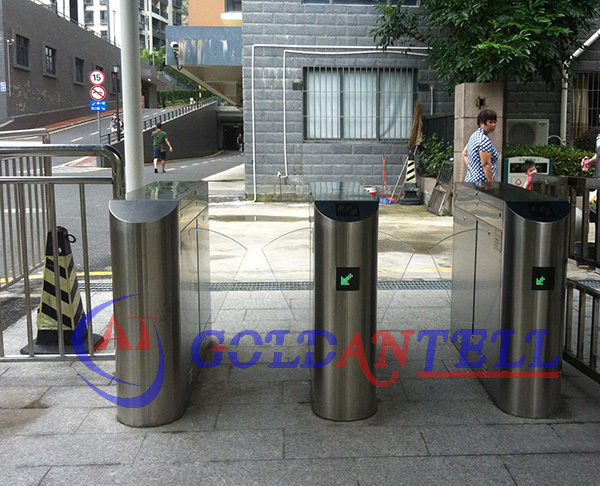

Applications

Our flap turnstile barrier series are suitable for subway stations, airports, tourist attractions, exhibition centers, swimming halls, residential areas, corporate entrances, and specialized access control. Note: Optical turnstiles with LED lighting are not recommended for outdoor or coastal installations.
