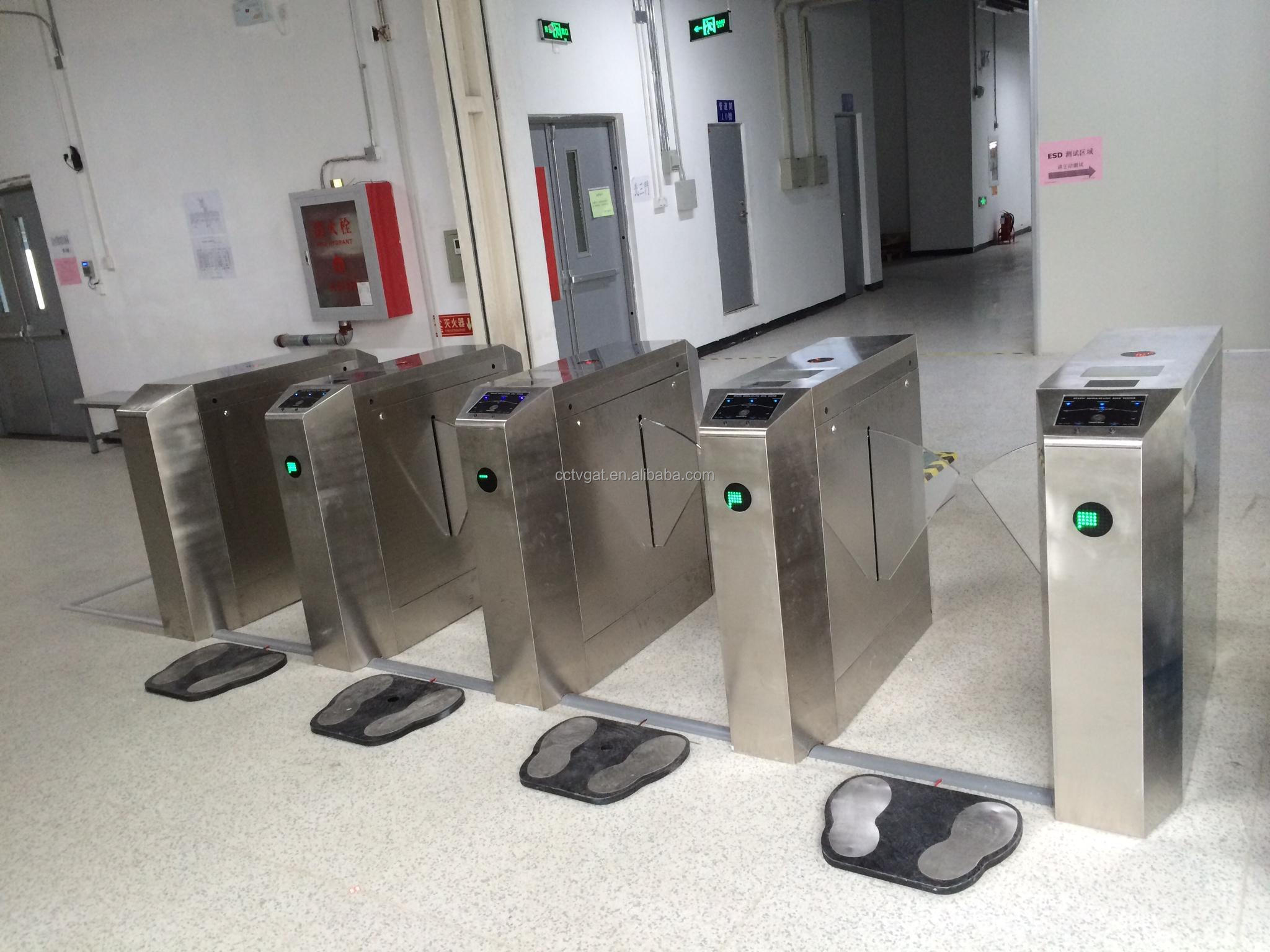

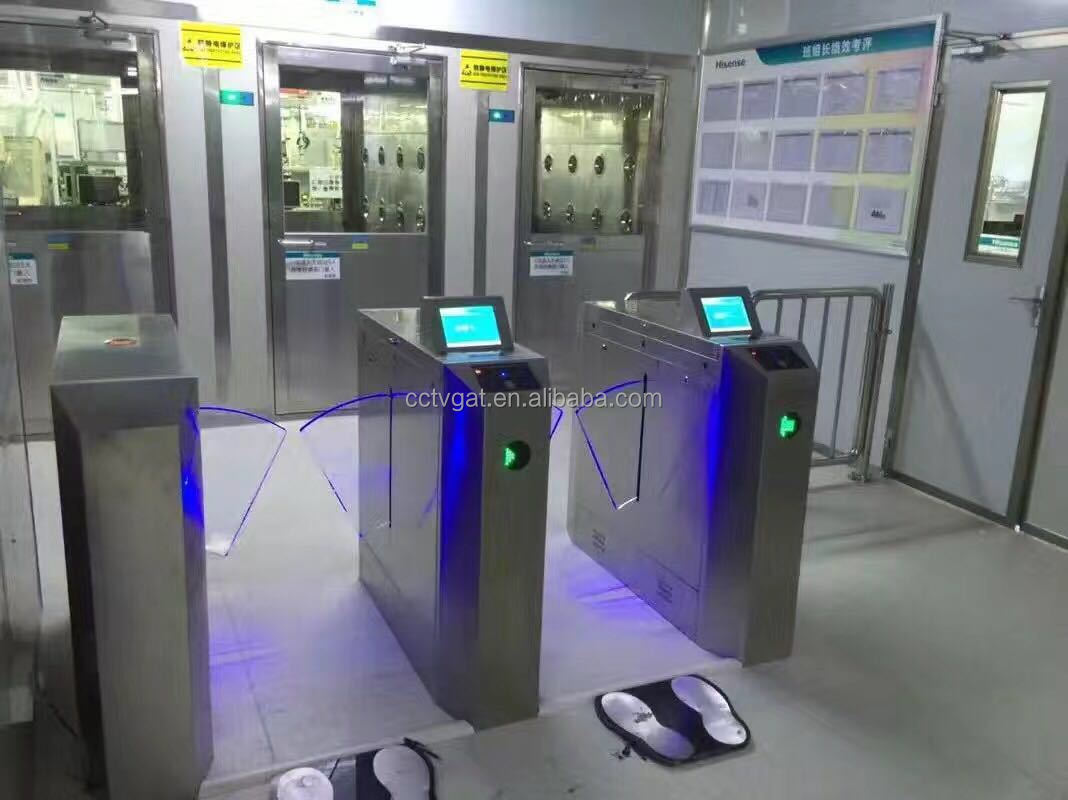

8-Inch LCD ESD Tester Turnstile Gate 1200mm Stainless Steel

Gambar besar : 8-Inch LCD ESD Tester Turnstile Gate 1200mm Stainless Steel

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	Goldantell/OEM
Nomor model:	GAT-201

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	2
Harga:	US$420-950

Kontak

Detil Deskripsi produk

Ukuran pintu putar:	1200mm (L) * 280mm (W) * 1000mm (H)	Ukuran pedal ESD:	400mm (w) x 420mm (l) x 20mm (h)
Kapasitas perekaman:	100.000 atau lebih	Ketepatan:	± 5%
Bahan:	304 stainless steel	Arah:	Tunggal atau Dua Arah
Antarmuka komunikasi:	RS485	Ukuran monitor LCD:	8 inci
Tegangan operasi:	Input AC220V Output DC12V	Suhu kerja:	5 ° C hingga 40 ° C.
Rentang tes:	0,01-1000mΩ (sepatu), 0,1-35mΩ (pergelangan tangan)	Konsumsi daya:	AC220V, 50HZ/AC110V, 60HZ
Berat bersih:	150kg	Lulus kecepatan:	30-40 orang/mnt
Perlindungan IP:	IP54
Menyoroti:	8-inch LCD ESD tester turnstile gate , stainless steel flap barrier gate , 1200mm ESD tester turnstile gate

Custom Designed 8-Inch LCD Monitor ESD Tester Turnstile Gate

Product Specifications

Attribute	Value
Item type	ESD Turnstile
Turnstile size	1200mm (L) × 280mm (W) × 1000mm (H)
ESD pedal size	400mm (W) × 420mm (L) × 20mm (H)
Recording information	Up to 100,000 or more
Accuracy	±5%
Material	304 stainless steel
Direction	Single or bi-directional (optional)
Access control system	Various access control compatible
Customization	Customized design, custom logo available
Communication interface	RS485

GAT-ESD305 ESD Tester System Specifications

Instrument Dimensions	8 inch LCD monitor
Pedal size	400mm (W) × 420mm (L) × 20mm (H)
Operating voltage	Input AC220V, Output DC12V
Working hours	Unlimited
Environmental conditions	Humidity: 0%~90%, Temperature: 5°C~40°C
Data storage	Automatically stores records and ESD test data (up to 100,000 or more)
Test Range and Accuracy	Left shoe: 0.01-1000MΩ (±5%) Right shoe: 0.01-1000MΩ (±5%) Wrist-strap: 0.1-35MΩ (±5%)

System Advantages

Larger 8-inch ESD monitor screen compared to standard 4-inch models
Supports IC or ID card access control in turnstile system

Turnstile Flap Gate Specifications

Power consumption	AC220V, 50Hz/AC110V, 60Hz (optional)
Housing Size	1200×300×1000mm
Housing material	1.5-2mm, 304# stainless steel, corrosion resistant
Net Weight	150KG
Drive motor	DC brushless motor
Channel width	500-600mm
Pass speed	30-40 persons/min
IP protection	IP54
Input signal options	DC12V/dry/contact/RS485/RS232/Remote
Fail-safe operation	Railing-off against power off
Working temperature	-15°C to 75°C
Working environments	Indoor, outdoor
Relative humidity	≤95% (non-condensing)
MCBF	2,500,000 cycles

Factory Production Photos

Installation Options

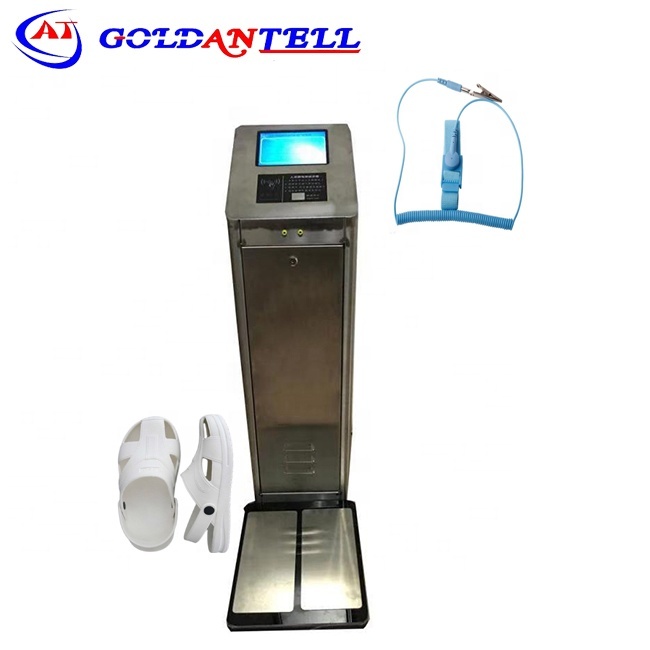

ESD Tester with pillar housing

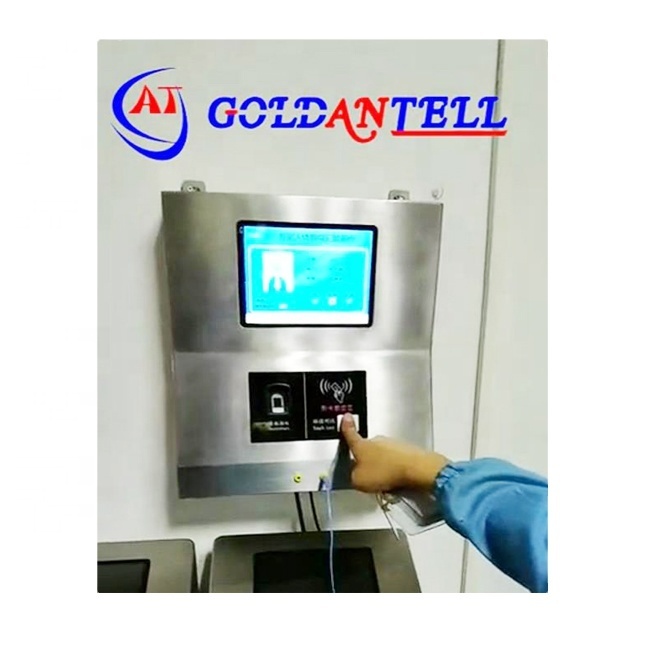

ESD Tester wall-mounted installation
