8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband

Gambar besar : 8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	Goldantell
Sertifikasi:	CE certificate
Model Number:	GAT-303

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1pc
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Dikemas dalam karton terlebih dahulu, lalu diperkuat dengan kotak kayu ekspor untuk kemasan luar
Waktu pengiriman:	7 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran:	T/T, Western Union, LC, Paypal
Menyediakan kemampuan:	2.000 pcs per bulan

Kontak

Detil Deskripsi produk

Dimensi:	L1200/1400XW280XH1000MM	Bahan:	304 Stainless Steel, (atau kustom 316)
Kecepatan transit:	25~30 orang / mnt	ODM/OEM:	Logo khusus, ukuran khusus, desain khusus
Sumber daya listrik:	110~240 V(AC)	Arah:	satu arah, dua arah dapat disesuaikan
Lebar Jalur:	<600mm	Working environment:	Indoor / Outdoor ( Shelter),indoor
Jaminan:	12 bulan	Usage:	Factory,Office,Hotel,Library,Metro Station,ect.

8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband

Introduction Of ESD Turnstile Gate System

1. Excetp esd system,the gate can be integrated with any kind of access controller system (covering: face recognition terminal, QR code scanner, RFID device, Push button, Fingerprint and Bio-metric device).

2. Use anti-passback movement, when people turn the three arms up to around 60 degrees then arms can no longer turn back.

3. Use hydraulic shock absorb, can effectively control the speed of the turntable, and no sound when rotation. reduce the vibration as well.

4. Type: full automatic ( arms auto on work status when power on); Semi-automatic; manual.

5. The body is made of brushed stainless steel which is robust, rigid, anti-rust, and durable.

6. Turnstile system Can equip higher configuration for areas with high traffic, such as airport/railway/metro/bus/park entrance or exit.

Feature & Function Of ESD Turnstile Gate System

-Low noise, no mechanical impact
-Single directional or Bi-directional
-High operation with quick response
-Excellent design, with high quality
-Robust, rigid , anti-rust and durable
-Smoothly working system
-Self-test function
Added function
-Counting function available (counter)
-Information display option (LCD display screen)
-Audible sound prompt
-Invalid entering alarm
-Auto-lift-arm function (full automatically type)

Special Function Of ESD Turnstile Gate System

1. counter: which records the pass times.

2. Coin or Token collector;

3. Card collector.

Technology parameter Of ESD Turnstile Gate System

Optimal flow rate	30 persons/min (open), 25-30 persons/min (closed)
Cabinet dimension	1200(L)* 280(W)* 1000(H)MM
Open type	push button/ access control
Passing direction	single in/out or Bidirectional
Working temperature	-15°C +75°C
communication with computer	standard RS485, TCP/IP
Reset time after break down	default 10s,can be changed to fit different demands

Display Of ESD Turnstile Gate System

♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.

♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.

♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.

Design Of ESD Turnstile Gate System

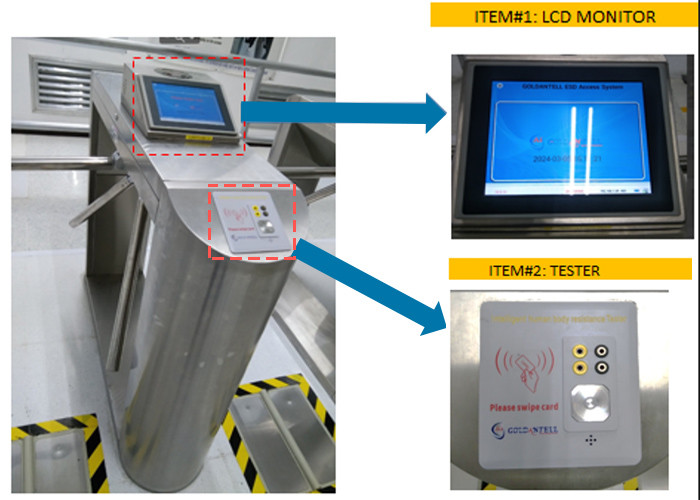

ESD tester system (which could be mount on turnstile gate) has 4 modes to choose from

① Simultaneously detect hands and feet. This mode is suitable for line operators;

② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;

③ Only detect the hand, this mode is suitable for assembly line or logistics;

④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.

Pls note: The above modes do not need to be switched manually, all can be set in the software, reading card automatically recognizes the employee's authority, the company can set different test card permissions according to different test requirements.

FAQ Of Turnstile System

Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q. What is your sample policy?
A: We offer samples if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q. Do you test all your goods before delivery?
A: Yes, we have the 100% test before delivery, and will provide a testing video for your confirmation before shipment.

Why Choose Our ESD System Turnstile Gates?
- Custom Solutions – Tailored to your security and design needs.
- 24/7 Support – Installation, maintenance, and troubleshooting.
- Competitive Pricing – Cost-effective without compromising quality.

This version is clean, professional, and ready for direct use in brochures, websites, or presentations. Let me know if you need any further refinements.
