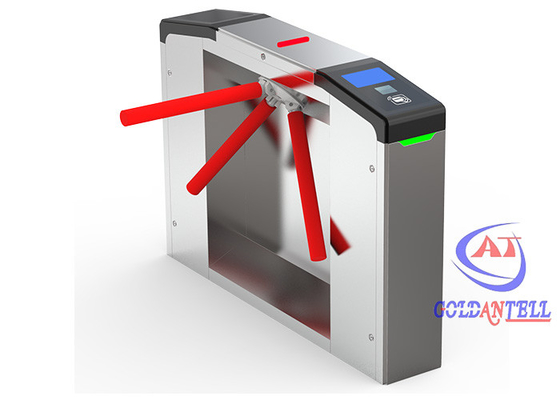

Factory Direct Price Tripod Turnstile Gate OEM/ODM Service

Gambar besar : Factory Direct Price Tripod Turnstile Gate OEM/ODM Service

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	Goldantell
Sertifikasi:	CE certificate
Nomor model:	Seri GAT-DT301

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1pc
Harga:	Dapat dinegosiasikan
Packaging Details:	closed wooden case
Waktu pengiriman:	7 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran:	T/T,Western Union,LC,Paypal
Menyediakan kemampuan:	2.000 pcs per bulan

Kontak

Detil Deskripsi produk

Aplikasi:	Perusahaan, hotel, bandara	Sumber daya listrik:	110~240 V(AC)
Arah:	masuk atau keluar, atau dua cara	Jaminan:	1 tahun
ODM/OEM:	Diterima	Lebar Jalur:	600mm
Motor:	DC motor tanpa sikat

Factory Direct Price Tripod Turnstile Gate OEM/ODM Service

Factory Direct Price Tripod Turnstile Gate Product Description

1.Tripod turnstile gate is compact and cost-effective entrance solutions.
2.The body is made of brushed stainless steel which is robust, rigid, anti-rust, and durable.
3.Tripod turnstile gate is ideal for indoor and outdoor settings.
4.It can be integrated with any kind of access controller system (e.g.: face recognition terminal, QR code scanner, RFID device, Push button, Fingerprint and Bio-metric device).
6.In case of emergency, the tripod turnstile gate will drop down automatically when power off.

Factory Direct Price Tripod Turnstile Gate OEM/ODM Service 0

Factory Direct Price Tripod Turnstile Gate OEM/ODM Service 1

Technology Parameters

Size	1200/1400mm (L) * 280mm (W) * 1000mm (H)
Working voltage	AC110/220±10%V, 50±10%HZ
Working movement	DC24V solenoid valve
Arm width:	510 mm
Support force of arm:	60kg
Passage width:	≤600 mm
Time of opening:	0.2 second
Pass speed:	30 persons/min
Emergence:	When power off, arms open automatically
Normal running life:	3 million
LED light:	direction arrow
Direction:	single or bi-directional (optional)
Working environment:	indoor/outdoor (with a tent over) -10℃~70℃
Relative humidity:	≤90% coagulation free
Communication interface:	standard RS485 interface, distance ≤1200m
Housing material	domestic standard 304# stainless steel
Input interface:	+12V level signal or pulse width>100ms 12V pulse, drive current>10mA

Feature & Function

1. Auto replacement function, re-position after person pass by.
2 Anti -tail function auto-lock once turn120° or 60°.
3. Arms auto drop when power off, ensure unblocked when accident.
4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work.
5. Diverse control mode optional, changeable due to varying, convenient for your manage.

Application Location

♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.

♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.

♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.

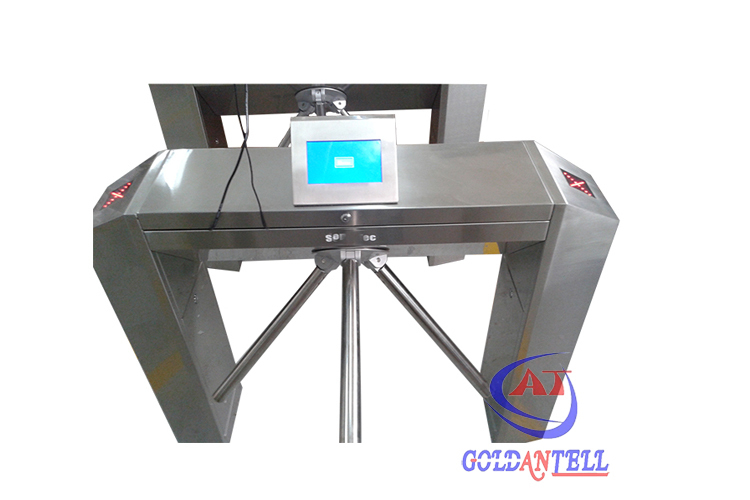

Details Photos

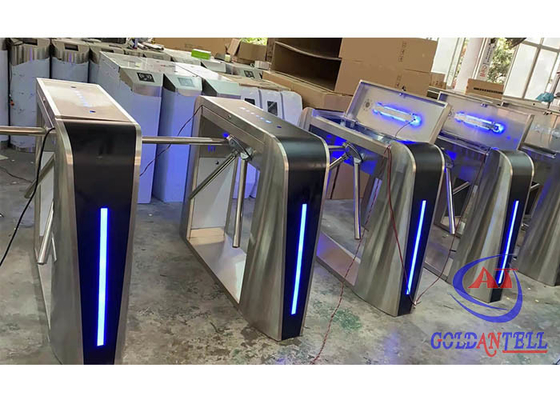

Factory Photos

FAQ

Q. What types of turnstiles are available?**
We offer:
Tripod Turnstiles– Basic, cost-effective entry control.
Full-Height Turnstiles– High security, anti-climb design.
Optical Turnstiles (Flap Barriers) – Touchless, fast throughput.
-Waist-High Turnstiles– Balanced security and accessibility.

Q. How do turnstiles integrate with access control systems

Turnstiles can connect to:
- RFID/Card Readers**
- Biometric Scanners (fingerprint, facial recognition)**
- Mobile Access (Bluetooth, NFC)**
- Ticketing Systems (for metro, stadiums, etc.)

Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q. What is your sample policy?
A: We offer samples if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q. Do you test all your goods before delivery?
A: Yes, we have the 100% test before delivery, and will provide a testing video for your confirmation before shipment.
